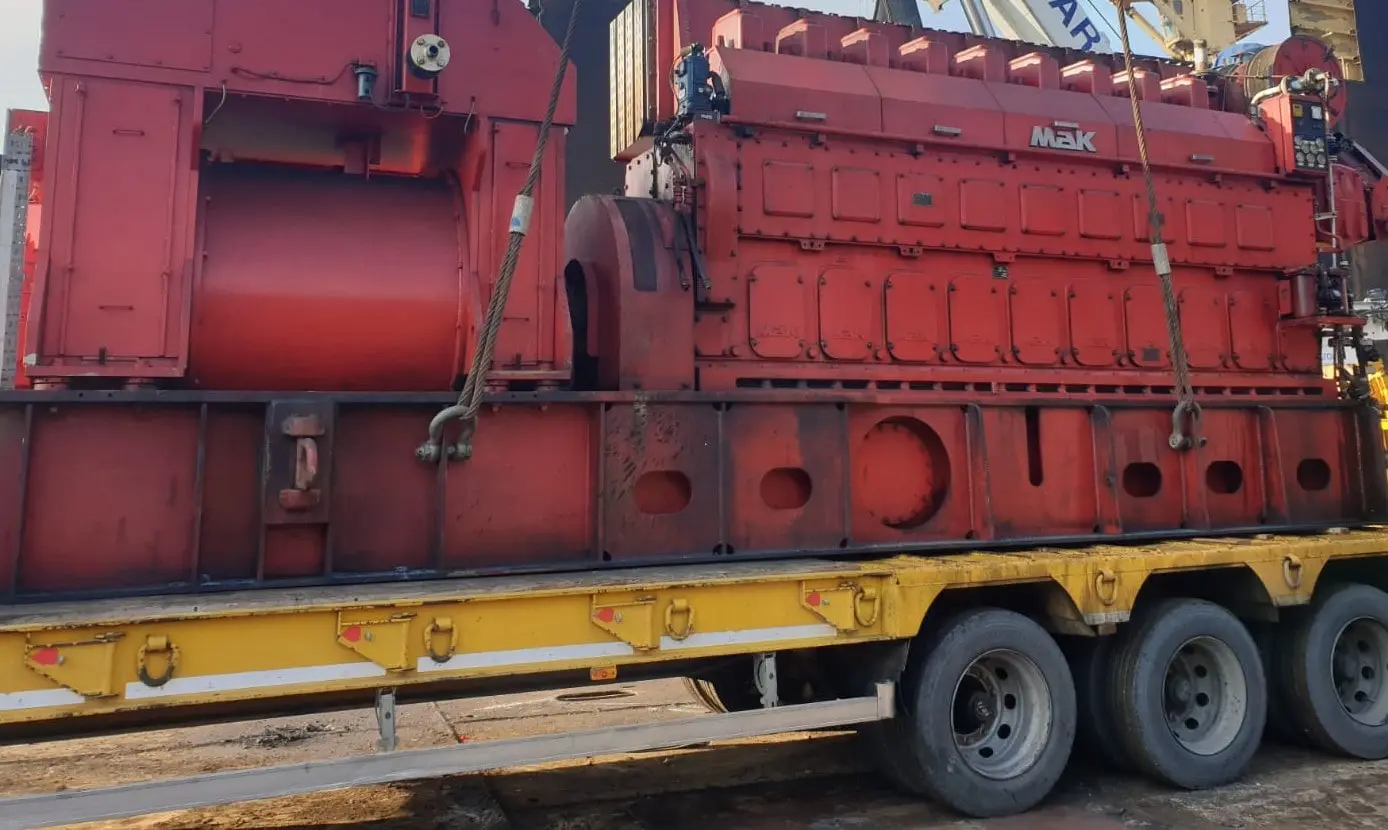

MAK 9M25 Diesel Engines For Sale M 25

MAK 9M25 Diesel Engines For Sale M 25 Propulsion

The M25 engine, which was debuted in 1996 and has a 255 mm bore and 400 mm stoke, is the second-smallest MaK engine in the engine program. There are 6, 8, and 9 cylinder inline versions of this kind available. 1,800 kW (6M25) to 3,000 kW (9M25) of power are available at 720 and 750 revolutions per minute.

Specs
Engine center distance (in millimeters): 26 M 25 C 2600 mm, 8.9 M 25 C 2700 mm
Cylinder lining removal requires a 2510-mm transverse cut and a 2735-mm longitudinal cut.

Nozzle placement: inquire about availability
Engine with free-end turbochanger is available; request dimensions

Product Information
400 mm (15.75 in) of stroke
255 mm (10.04 in) of bore
3913 mm (154.06 in) tall
2315 mm (91.14 in) of width
6719 mm (264.53 in) in length
3000 HP (2236.80 kw) of power
70548 kilograms (155531.72 pounds)
184000 cm3 (184.00 L, 11228.37 in3) of displacement
Rated Speed: 750 r/min
